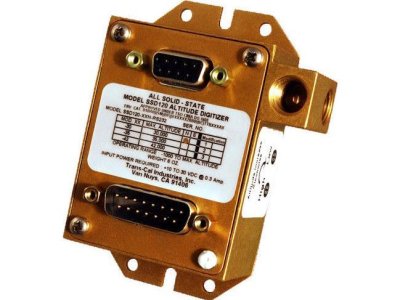

Trans-Cal Industries SSD120 Altitude Encoder

SSD120-35N-RS232, Model SSD120 Trans-Cal Encoder, Solid state, 35K, With RS232 output.

Features

• Solid State Altitude Encoder
• Smallest & also Lightest Altitude Encoder Currently Available
• 42 Months Manufacture Direct Replacement Warranty
• Average MTBF: 9.7+ years.
• Also, Pin for Pin replacement for Most Other Manufacturers Encoders
• Optional: Available with two independent RS232 serial data ports selectable message protocols for most popular avionics interfaces. Programmable for 100' and also 10' resolutions.
• Lastly, Optional: Available with adapter plates that will allow the installer to mount the unit in another manufacturer’s mounting tray.

Specifications

• OPERATING ALTITUDE: -1000' to +30,000' (Available in altitudes from 30,000' up to 100,000')
• Also, OPERATING VOLTAGE: 14 or 28 VCD
• CURRENT: 0.270 Amps
• OPERATING TEMPERATURE: -20° to +70°C
• WARM-UP TIME: No Warm-up Time: +20°C to +70°C, -20°C to +20°C 30 seconds
• ACCURACY: ± 50' from -1000' to +30,000'
• Lastly, WEIGHT: 5.9 oz.
