Telex

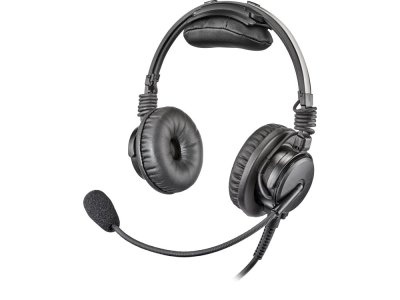

Telex Airman 8+ Headset ANR - Connector: GA

Telex

Telex Airman 8+ Headset ANR - Connector: GA

Headset ANR, 600 Ohms More
Variant does not exist

Choose a variant

GAXLR-5XLR-5 (P5P)
Product code
F.01U.373.590
Certificate
FAA
Stav
Factory New
Warranty
24 months
$ 668.40 $ 668.40 excl. VAT
+5 point to the loyalty system

General Description

The Telex Airman 8+ is a lightweight noise-reducing headset designed specifically for optimizing pilot communications in commercial and business turbine aircraft. Building on the tradition of the Airman 850 and the Airman 8, Airman 8+ has improved ANR capability and comfort. The Airman 8+ is among the lightest Active Noise Reduction headsets on the market and one of only three FAA TSO C139a approved ANR headsets to utilize Telex’s proprietary battery-free system. Larger pliable ear cushions and headband pad combined with dual axis ear cup pivots to provide long flight wearing comfort.

Features

  • Flexible boom-mounted microphone, positionable for right- or left-side use
  • Light-weight, battery-free ANR with onboard fail-safe to ensure constant communication
  • Larger soft leathette ear cushions and headband pad
  • Stainless steel headband and pivot points for superior durability
  • FAA TSO C139a approved

Specifications

Headphones

  • Type: Dynamic
  • Impedance: 600 ? ±20% @ 1 kHz
  • Frequency Response: (Per RTCA DO-214a) <15dB max. to min. over the range of 315 to 3150Hz
  • Sensitivity: (Per RTCA DO-214a)
    • 92 ±5 dBSPL (normal)
    • 98 ±5 dBSPL (high)

Microphone and Amplifier

  • Element Type: Noise-canceling amplified electret
  • Frequency Response (Per RTCA DO-214a)
  • Sensitivity: (Per RTCA DO-214a), -28dB ±3dB re 1V/Pa at 1kHz, 12V
  • Operating Voltage: (Per RTCA DO-214a) 8-28 VDC at boom microphone (470 ? load circuit) or at pin 5 of the XLR connection

ANR

  • Power Supply:
    • .590 : Receives power from boom microphone connection (See operating voltage, above)
    • .591 : Receives power from either the boom microphone connection or pin 5 (See operating voltage, above)
  • Attenuation: Provides nominal noise reduction 18 dB or higher between 100 Hz and 400 Hz and 15 dB (minimum) of attenuation between 100 Hz and 300 Hz

Connector Type

  • Dual Plug Connector (F.01U.373.590)
    • Microphone: PJ-068 (equivalent)
    • Headphones: PJ-055 (equivalent)
  • XLR Connector (F.01U.373.591)
    • Microphone and Headphones: 5-pin Male XLR

Physical

  • Weight:
    • F.01U.373.590 (dual plug): 190g
    • F.01U.373.591 (XLR Plug): 192g
  • Cord Length: 6 ft. +/-4 in. (1.8 m +/- 10 cm)
  • Color: Black and Stainless Steel
  • Controls: Active Noise Reduction On/Off Switch Volume Normal/High Switch
Active/Passive Active
Bluetooth No
Ground Support No
Helicopter Mount No
Single Side No
Behind-the-Head No
Connector GA, XLR-5, XLR-5 (P5P)
