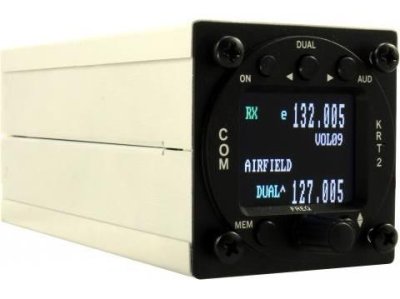

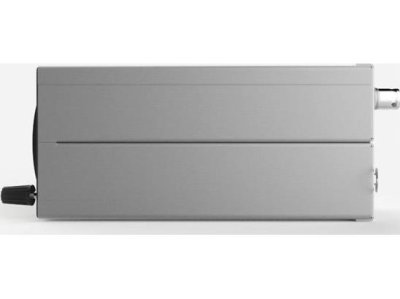

TQ Systems KRT2 (8.33kHz) COM Radio

star 1star 2star 3star 4star 5Hodnocení 5.0Rating value is 5 of 5
TQ Systems

TQ Systems KRT2 (8.33kHz) COM Radio

Product code
299364.0200
Certificate
EASA
Condition
Factory New
Warranty
24 months
$ 1,363.70 $ 1,363.70 excl. VAT
In stock
+11 point to the loyalty system
  • Frequency Range: 118.000 MHz to 136.990 MHz
  • Channel Selection: 8.33 or 25 kHz (select automatically)
  • RF-Output Power: > 6 W (carrier power)
  • Receiver Sensitivity: > 12 dB SINAD @ 2 uV
  • Input Voltage Range: 9 V DC to 36 V DC
  • Operating Temperature Range: -20°C to +55°C, for short time up to +70°C
  • Current consumption: 1,6 A @12 V DC (transmit), 110mA@12 V DC (receive standby)
  • Certification: ETSO-2C169a, ED-23B Class 4, C, TSO-C169a,Class 6, H1 & H2
  • Function: dual watch mode, integrated VOX / Intercom
  • Weight / dimensions: 360g / 65 x 65 x 144 (+ plugs) mm
  • The KRT2 is designed for 8.33 kHz and 25kHz channel spacing that will become the new international standard for airborne communication. Switching between the 8.33 and the 25 kHz mode is effortlessly simple. Standard or dynamic microphones can be used. A built-in-test facility increases flight safety. The dual watch mode that allows scanning of two different channels is included. The KRT2, with its integrated VOX/Intercom circuit, allows communication between pilot and co-pilot.

    Remote control unit available The KRT2 VHF-AM transceiver has a full graphic LC-display that allows for easy reading under all light conditions, including full sun.

    The display illumination can be dimmed or turned off.

    Size 57 mm
    8.33 kHz capability Yes
    Mount Type Panel Mount
    Nominal Output 6W
    Intercom Yes
    Channel spacing 8,33 kHz
    Certified Yes
    Install Kit included No
