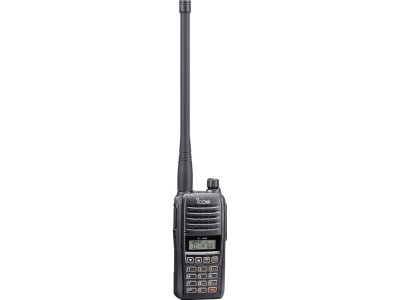

ICOM IC-A16E (8.33kHz) Portable COM Radio

• 8.33 kHz and 25 kHz channel spacing
• 1500 mW loud audio provides clear communications
• 6 W (PEP) /1.8 W (carrier) RF output power
• Built-in Bluetooth® for Hands-Free Operation
• Large capacity battery pack provides 17 hours* of long battery life
• * With BP-280. Typical operation with
• TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF
• Compact, waterproof durable body (IP67/54 and MIL-STD-810-G)
• LCD and key backlight for night time operation
• Compatible* with third-party aviation headsets
• * Optional headset adapter OPC-2401 required.

Other features

• Auto Noise Limiter (ANL) for noise reduction
• Side Tone function
• Internal VOX capability
• 200 memory channels with names up to 8 characters
• BNC type antenna connector

Supplied accessories

• BP-280 battery pack
• BC-213 rapid charger
• BC-123SA AC adapter
• FA-B02AR antenna
• MB-133 belt clip
• Hand strap

General

• Frequency range TX: 118.000–136.992 MHz
• Number of memory channels: 200 channels
• Channel spacing: 8.33 kHz/25 kHz
• Type of emission: 6K00A3E, 5K60A3E
• Power supply requirement: 7.2 V DC
• Current drain (approximate) TX High: 1.8 A
• Current drain (approximate) Rx Stand-by: 65 mA typical
• Current drain (approximate) Rx Max. audio: 650 mA
• Antenna impedance: 50 ? (BNC type antenna connector)
• Operating temperature range: –20°C to +55°C
• Dimensions (W×H×D) (Projections not included): 52.2 × 111.8 × 34.1 mm, 2.1 × 4.4 × 1.3 in (with BP-280)
• Weight (approximate): 257 g, 9.1 oz (with BP-280)

Transmitter

• Output power (at 7.2 V DC): 6.0 W (PEP), 1.8 W (carrier)
• Audio harmonic distortion: Less than 10% (at 85% + 3 dB modulation)
• Harmonics spurious emissions: Less than –36 dBm (Except for operating frequency ±1 MHz.)
• Frequency stability: ±1 ppm

Receiver

• Intermediate frequencies: 46.35 MHz (1st), 450 kHz (2nd)
• Sensitivity: Less than 0 dBµ (at 12 dB SINAD with CCITT)
• Squelch sensitivity: (Threshold) Less than 0 dBµ
• Spurious response: More than 70 dB
• Ham and noise: More than 40 dB (at 90% modulation)
• Audio output power INT SP: 1500 mW typical
• Audio output power EXT SP: More than 350 mW (AM 8 ? 60% modulation at 10% distortion)
• External speaker connector: 3 conductor 3.5 (d) mm
